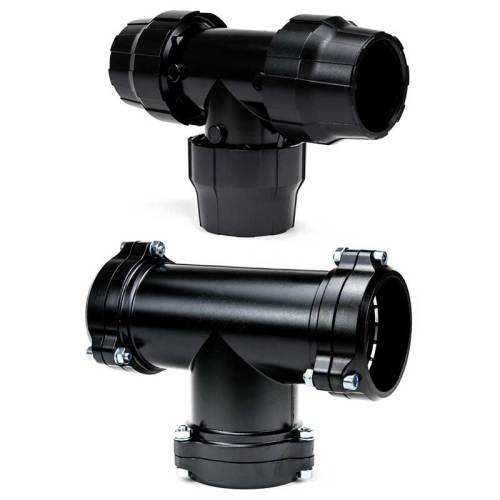

Aircom Aluminum Equal Tee
Price range: $27.79 through $763.61 PER SINGLE PIECE
Use the Aluminum Equal Tee to connect three equal pieces of Aircom Aluminum Pipe. Available in 20mm to 220mm, 168 & 220mm are cast fittings.
- Description
- Additional information
Description
Aircom Aluminum Equal Tee
Use to connect 3 equal ends of Aircom aluminum pipe.
| Code | Style | Ø | inch | qty / bag |
| QLTEAL020 | A | 20 | 3/4″ | 2 |
| QLTEAL025 | A | 25 | 1″ | 2 |
| QLTEAL032 | A | 32 | 1.1/4″ | 2 |
| QLTEAL040 | A | 40 | 1.1/2″ | 1 |
| QLTEAL050 | A | 50 | 2″ | 1 |
| QLTEAL063 | A | 63 | 2.1/2″ | 1 |
| QLTEAL080 | A | 80 | 3″ | 1 |

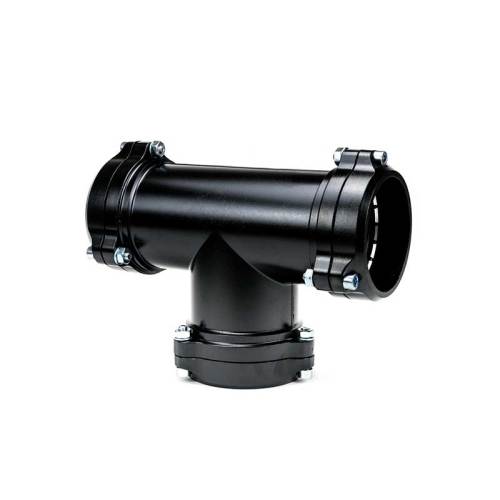

| QLTEAL110 | B | 110 | 4″ | 1 |
| QLTEAL168 | C | 168 | 6″ | 1 |
| QLTEAL220 | C | 220 | 8″ | 1 |
Quick Line Aluminum
A complete system of pipes and fittings in aluminum.
The fittings are made in painted, die-cast aluminum and are available in diameters:
20–25–32–40–50–63–80–110–168 & 220 mm
The entire range of threaded fittings is available with GAS or NPT thread.
Aircom systems pay for themselves.
5 main reasons:
- Eliminate Wasted Air and Leaks – Our components in aluminum, technopolymer and HIP guarantee superior, above-average performance.
- Modular Design – Flexibility of use and greater adaptability to the specific usage requirements.
- Expandability According to Requirements – The system grows with the plant.
- Easy, Rapid Installation – Reduction in labor costs and ease of intervention.
- Optimum, Constant Performance – Constant energy savings over time.
Use the Aluminum Equal Tee to connect three equal pieces of Aircom Aluminum Pipe. Available in 20mm to 220mm, 168 & 220mm are cast fittings.
Additional information
| Weight | N/A |
|---|---|
| Diameter | 3/4" or 20mm, 1" or 25mm, 1 1/4" or 32mm, 1 1/2" or 40mm, 2" or 50mm, 2 1/2" or 63mm, 3" or 80mm, 4" or 110mm, 6" or 168mm, 8" or 220mm |
| Aircom Series | Grooved Series, Quick Line Aluminum |
