Aircom Polymer Tee Reducing
$18.53 – $75.52 PER SINGLE PIECE
- Description
- Additional information
Description

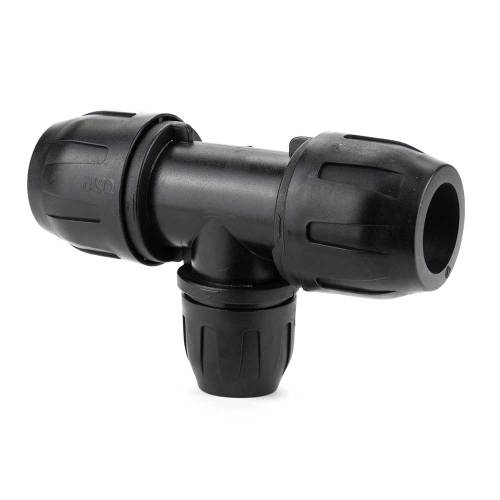

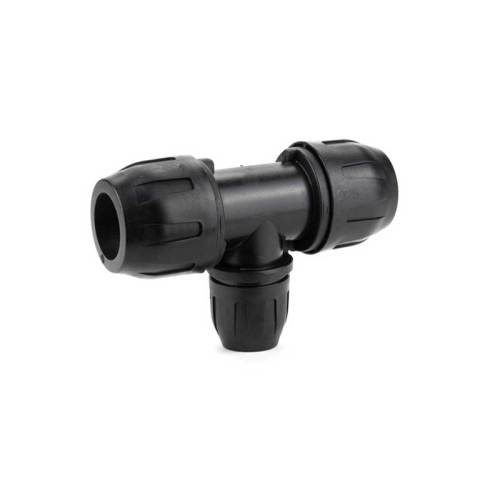

Aircom Polymer Tee Reducing
Quick Line HR-Polymer Composite – A complete system of pipes in aluminum and fittings in HR-Polymer Composite. The fittings are made in HR-Polymer Composite and are available in diameters:
16–20–25–32–40–50–63 mm
The entire range of threaded fittings is available with GAS or NPT thread. The polymer composite series is a low cost
Use to Connect 2 Equal Pieces of Pipe with a 3rd smaller piece of pipe. For 3 equal connections use the equal tee.
| Code | Ø | inch | qty / bag |
| QLTRPA020016 | 20X16 | 3/4″X1/2″ | 5 |
| QLTRPA025016 | 25X16 | 1″X1/2″ | 5 |
| QLTRPA025020 | 25X20 | 1″X3/4″ | 5 |
| QLTRPA032020 | 32X20 | 1.1/4″X3/4″ | 2 |
| QLTRPA032025 | 32X25 | 1.1/4″X1″ | 2 |
| QLTRPA040020 | 40X20 | 1.1/4″X3/4″ | 2 |
| QLTRPA040025 | 40X25 | 1.1/2″X1″ | 2 |
| QLTRPA040032 | 40X32 | 1.1/2″X1 1/4″ | 2 |
| QLTRPA050020 | 50X20 | 2″X3/4″ | 1 |
| QLTRPA050025 | 50X25 | 2″X1″ | 1 |
| QLTRPA050032 | 50X32 | 2″X1.1/4″ | 1 |
| QLTRPA050040 | 50X40 | 2″X1.1/2″ | 1 |
| QLTRPA063020 | 63X20 | 2 1/2″X3/4″ | 1 |
| QLTRPA063025 | 63X25 | 2.1/2″X1″ | 1 |
| QLTRPA063040 | 63X40 | 2.1/2″X1.1/2″ | 1 |
| QLTRPA063050 | 63X50 | 2.1/2″X2″ | 1 |
Aircom Polymer Tee Reducing Construction
AIRCOM is the only company that offers a complete range of piping systems differentiated by features and performance.
Our constant drive to innovate has led to two new piping systems: Quick Line with aluminum pipes and with fittings in aluminum and in HR-Polymer Composite. Both systems stand out in terms of speed and ease of assembly and for their modular characteristics.
Additional information
| Weight | N/A |
|---|---|
| Diameter | 3/4" or 20mm, 1" or 25mm, 1 1/4" or 32mm, 1 1/2" or 40mm, 2" or 50mm, 2 1/2" or 63mm |
| Outlet | 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" |
| Aircom Series | HR-Polymer Composite |
