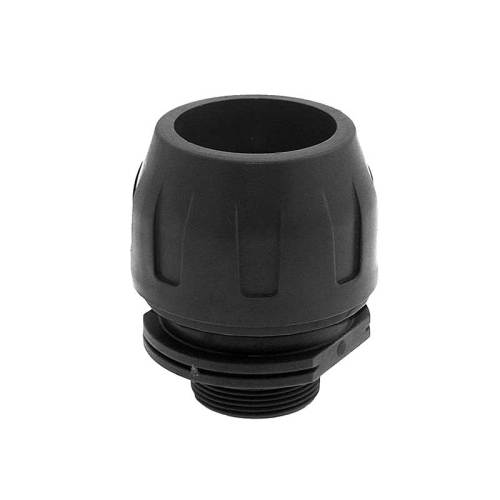

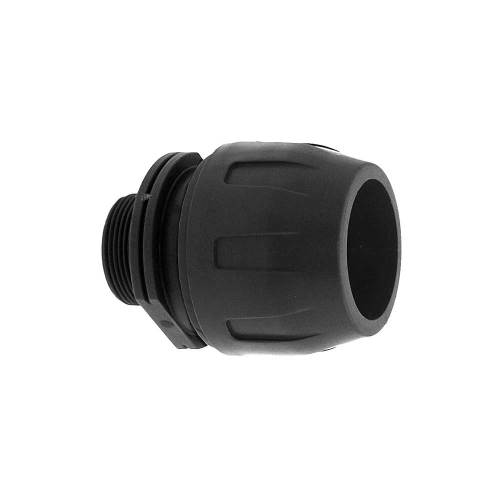

Polymer Male NPT Adapter

Polymer Male NPT Adapter

Polymer Male NPT Adapter

$7.26$26.63

In stock

$7.26$26.63

SKU: N/A Categories: , Tag:
Clear
View cart

Description

Polymer Male NPT Adapter

Quick Line HR-Polymer Composite Aircom Polymer Pipe End To Male NPT Adapter – A complete system of pipes in aluminum and fittings in HR-Polymer Composite. The fittings are made in HR-Polymer Composite and are available in diameters:

16202532405063 mm

The entire range of threaded fittings is available with GAS or NPT thread. The polymer composite series is a low cost

The Polymer Male NPT Adapter is used to connect a pipe end to a female thread.

Code Ø inch qty / bag
QLMNPA016048NPT 16X1/2″ 1/2″X1/2″ 5
QLMNPA020048NPT 20X1/2″ 3/4″X1/2″ 5
QLMNPA020068NPT 20X3/4″ 3/4″X3/4″ 5
QLMNPA025048NPT 25X1/2″ 1″X1/2″ 5
QLMNPA025068NPT 25X3/4″ 1″X3/4″ 5
QLMNPA025088NPT 25X1″ 1″X1″ 5
QLMNPA032088NPT 32X1″ 1 1/4″X1″ 5
QLMNPA032108NPT 32X1.1/4″ 1.1/4″X1 1/4″ 5
QLMNPA040088NPT 40X1″ 1.1/2″X1″ 3
QLMNPA040108NPT 40X1.1/4″ 1.1/2″X1.1/4″ 3
QLMNPA040128NPT 40X1.1/2″ 1.1/2″X1.1/2″ 3
QLMNPA050128NPT 50X1.1/2″ 2″X1.1/2″ 2
QLMNPA050168NPT 50X2″ 2″X2″ 2
QLMNPA063168NPT 63X2″ 2.1/2″X2″ 2



Aircom Polymer Fitting Construction

aircom polymer union

AIRCOM is the only company that offers a complete range of piping systems differentiated by features and performance.

Our constant drive to innovate has led to two new piping systems: Quick Line with aluminum pipes and with fittings in aluminum and in HR-Polymer Composite. Both systems stand out in terms of speed and ease of assembly and for their modular characteristics.

Aircom aluminum pipe fro compressed air polymer fittings

Additional information

Weight N/A
Diameter

, , , , , ,

NPT Thread

1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Aircom Series

HR-Polymer Composite
