Aluminum Quick Branch Drop – Use for quick drop reductions to the point of use without the need to cut aluminum pipe

SKU: N/A Categories: ,
Clear
View cart

Description

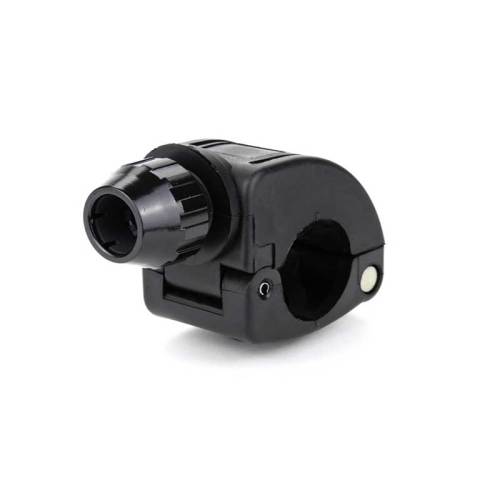

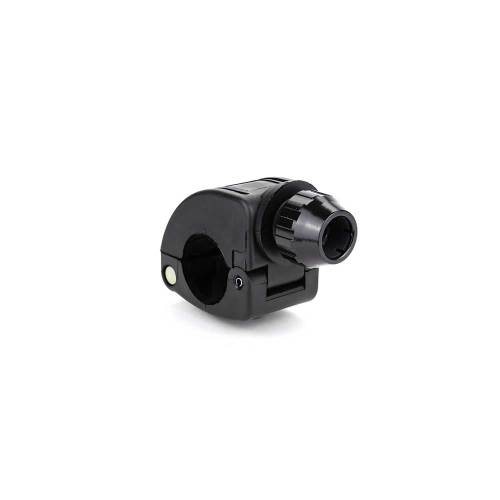

Aluminum Quick Branch Drop

Use the quick drop branches in place of reduction tee’s. The branches require only a drilled hole in the installed pipe. This allows the drops to be installed after the rest of the system without the need for cutting the aluminum pipe. Wrap the drop bracket around the pipe and install the smaller diameter pipe just like any other fitting.

Code Ø inch qty / bag
QLDERAL025020 25×20 1″x3/4″ 2
QLDERAL032020 32×20 1.1/4″x3/4″ 2
QLDERAL040020 40×20 1.1/2″x3/4″ 1
QLDERAL040025 40×25 1.1/2″x1″ 1
QLDERAL050020 50×20 2″x3/4″ 1
QLDERAL050025 50×25 2″x1″ 1
QLDERAL063020 63×20 2.1/2″x3/4″ 1
QLDERAL063025 63×25 2.1/2″x1″ 1
QLDERAL063032 63×32 2.1/2″x1.1/4″ 1
QLDERAL080020 80×20 3″x3/4″ 1
QLDERAL080025 80×25 3″x1″ 1
QLDERAL080032 80×32 3″x1.1/4″ 1
QLDERAL110020 110×20 4″x3/4″ 1
QLDERAL110025 110×25 4″x1″ 1
QLDERAL110032 110×32 4″x1.1/4″ 1

Quick Line Aluminum

A complete system of pipes and fittings in aluminum.

The fittings are made in painted, die-cast aluminum and are available in diameters:

20253240506380110168 & 220 mm

The entire range of threaded fittings is available with GAS or NPT thread.

Aircom systems pay for themselves.

5 main reasons:

  1. Eliminate Wasted Air and Leaks – Our components in aluminum, technopolymer and HIP guarantee superior, above-average performance.
  2. Modular Design – Flexibility of use and greater adaptability to the specific usage requirements.
  3. Expandability According to Requirements – The system grows with the plant.
  4. Easy, Rapid Installation – Reduction in labor costs and ease of intervention.
  5. Optimum, Constant Performance – Constant energy savings over time.



Additional information

Weight N/A
Diameter

, , , , , ,

Outlet

3/4", 1", 1 1/4"

Aircom Series

Quick Line Aluminum
