Aluminum Equal Union Connection

Aluminum Equal Union Connection

Aluminum Equal Union Connection

$21.42$247.50

In stock

$21.42$247.50

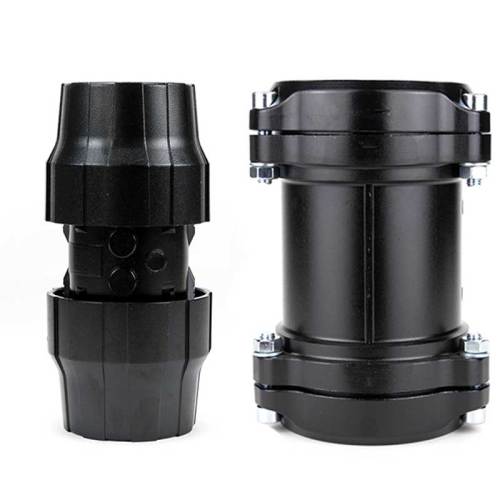

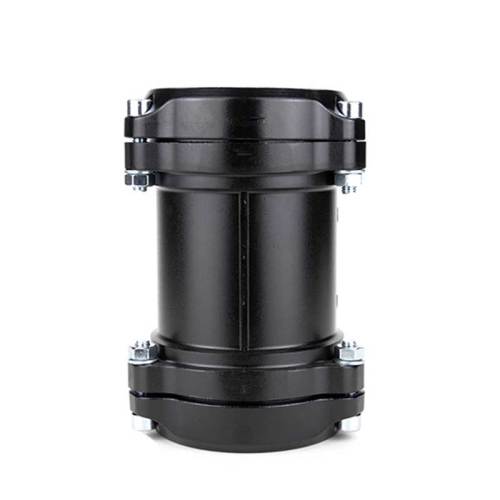

Use the union to connect two pieces of pipe together. Unions can also be connected to pipe end jump hoses.

SKU: N/A Categories: , Tag:
Clear
View cart

Description

Aluminum Equal Union Connection

Use the union to connect two pieces of pipe together. Unions can also be connected to pipe end jump hoses.

Code Style Ø inch qty / bag
QLMAAL020 A 20 3/4″ 2
QLMAAL025 A 25 1″ 2
QLMAAL032 A 32 1.1/4″ 2
QLMAAL040 A 40 1.1/2″ 1
QLMAAL050 A 50 2″ 1
QLMAAL063 A 63 2.1/2″ 1
QLMAAL080 A 80 3″ 1
QLMAAL110 B 110 4″ 1
QLMAAL168 C 168 6” 1
QLMAAFL168 C 168 6” 1

Quick Line Aluminum

A complete system of pipes and fittings in aluminum.

The fittings are made in painted, die-cast aluminum and are available in diameters:

20-25-32-40-50-63-80-110-168,3-220 mm

The entire range of threaded fittings is available with GAS or NPT thread.

Aircom systems pay for themselves.

5 main reasons:

  1. Eliminate Wasted Air and Leaks – Our components in aluminum, technopolymer and HIP guarantee superior, above-average performance.
  2. Modular Design – Flexibility of use and greater adaptability to the specific usage requirements.
  3. Expandability According to Requirements – The system grows with the plant.
  4. Easy, Rapid Installation – Reduction in labor costs and ease of intervention.
  5. Optimum, Constant Performance – Constant energy savings over time.

Use the Aluminum Equal Union Connection to connect two equal pieces of pipe.

Additional information

Weight N/A
Diameter

, , , , , , , , , ,

Aircom Series

Grooved Series, Quick Line Aluminum
