Aircom Threaded Valves Aluminum Pipe
Price range: $44.44 through $334.55 PER SINGLE PIECE
- Description
- Additional information
Description

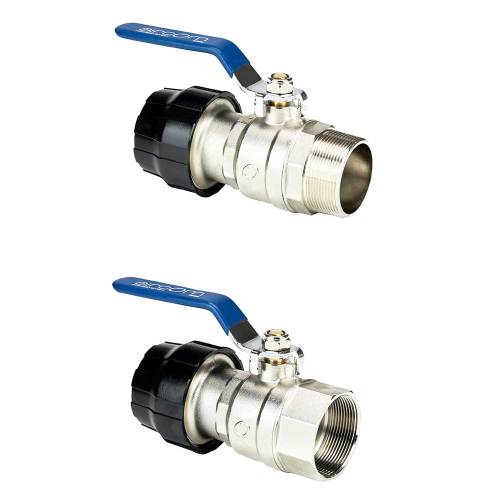

Aircom Threaded Valves Aluminum Pipe

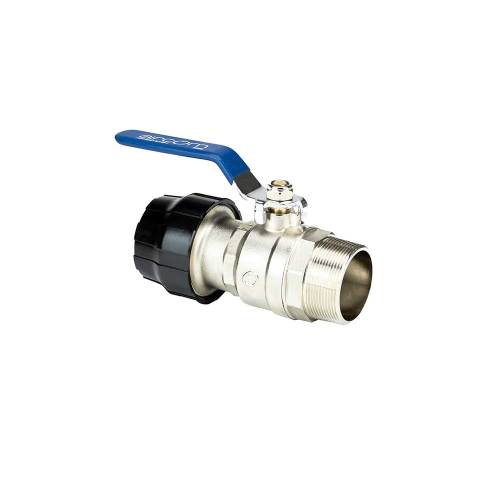

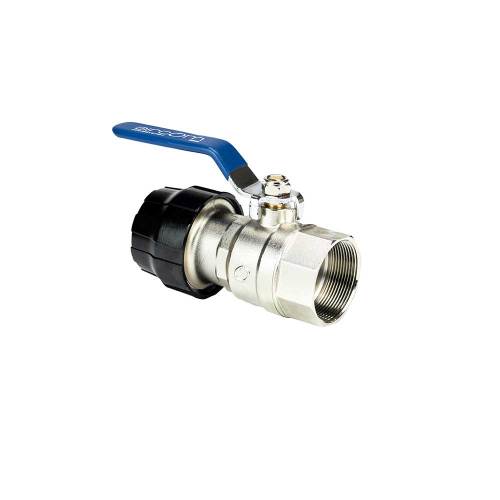

Ball valve Threaded – Aluminum – Sold in pack of 2 – Use to connect 15mm (1/2″),20mm (3/4″) to 1/2″ female or male NPT connections; or 25mm (1″) to 3/4″ female or male NPT connections.
| Code | Ø | inch | Thread | qty / bag |
| QLVASSM020068NPT | 20×3/4″ | 3/4″x3/4″ | Male | 1 |
| QLVASSM025088NPT | 25×1″ | 1″x1″ | Male | 1 |
| QLVASSM032108NPT | 32×1 1/4″ | 1 1/4″x1 1/4″ | Male | 1 |
| QLVASSM040128NPT | 40×1 1/2″ | 1 1/2″x1 1/2″ | Male | 1 |
| QLVASSM050168NPT | 50×2″ | 2″x2″ | Male | 1 |
| QLVASSM063208NPT | 63×2″ | 2 1/2″x2″ | Male | 1 |
| QLVASSM080248NPT | 80×3″ | 3″x3″ | Male | 1 |
| QLVASSF020068NPT | 20×3/4″ | 3/4″x3/4″ | Female | 1 |
| QLVASSF025088NPT | 25×1″ | 1″x1″ | Female | 1 |
| QLVASSF032108NPT | 32×1 1/4″ | 1 1/4″x1 1/4″ | Female | 1 |
| QLVASSF040128NPT | 40×1 1/2″ | 1 1/2″x1 1/2″ | Female | 1 |
| QLVASSF050168NPT | 50×2″ | 2″x2″ | Female | 1 |
| QLVASSF063208NPT | 63×2″ | 2 1/2″x2″ | Female | 1 |
| QLVASSF080248NPT | 80×3″ | 3″x3″ | Female | 1 |
Quick Line Aluminum Series
A complete system of pipes and fittings in aluminum. The fittings are made in painted, die-cast aluminum and are available in diameters:
20–25–32–40–50–63–80–110–168 & 220 mm
The entire range of threaded fittings is available with GAS or NPT thread.
Why Aircom Quick Line Aluminum
ELIMINATE WASTED AIR AND LEAKS – Our components in aluminum, technopolymer and HIP guarantee superior, above-average performance.
EXPANDABILITY ACCORDING TO REQUIREMENTS – The system grows with the plant.
OPTIMUM, CONSTANT PERFORMANCE – Constant energy savings over time.
MODULAR DESIGN – Flexibility of use and greater adaptability to the specific usage requirements.
EASY, RAPID INSTALLATION – Reduction in labor costs and ease of intervention.
AIRCOM is the only company that offers a complete range of piping systems differentiated by features and performance. The constant drive to innovate has led to two new piping systems:
Quick Line with aluminum pipes and with fittings in aluminum and in HR-Polymer. Both systems stand out in terms of speed and ease of assembly and for their modular characteristics.
Use Aircom Threaded Valves Aluminum Pipe, for an already threaded connection.
Additional information
| Weight | N/A |
|---|---|
| Diameter | 3/4" or 20mm, 1" or 25mm, 1 1/4" or 32mm, 1 1/2" or 40mm, 2" or 50mm, 2 1/2" or 63mm, 3" or 80mm |
| Outlet | 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3" |
| Thread | Male, Female |
| Aircom Series | Quick Line Aluminum |
