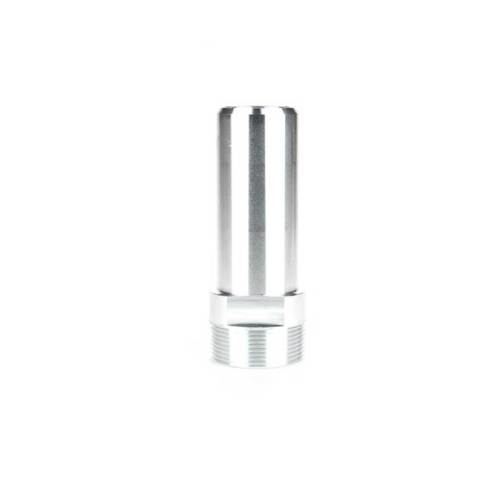

Male Threaded Quick Line Spigot – Aluminum
$10.08 – $256.80
- Description
- Additional information
Description
Male Threaded Quick Line Spigot – Aluminum – Sold as single fitting
Use the spigot in the end of a fitting just like it was a piece of pipe. This gives any fitting the possibility to connect to a female NPT connection.
| Code | Ø | inch | qty / bag |
| QLPUNM016038NPT | 16×3/8″ | 1/2″x3/8″ | 1 |
| QLPUNM020048NPT | 20×1/2″ | 3/4″x1/2″ | 1 |
| QLPUNM020068NPT | 20×3/4″ | 3/4″x3/4″ | 1 |
| QLPUNM025088NPT | 25×1″ | 1″x1″ | 1 |
| QLPUNM032108NPT | 32×1 1/4″ | 1.1/4″x1.1/4″ | 1 |
| QLPUNM040128NPT | 40×1 1/2″ | 1.1/2″x1.1/2″ | 1 |
| QLPUNM050168NPT | 50×2″ | 2″x2″ | 1 |
| QLPUNM063168NPT | 63×2″ | 2.1/2″x2″ | 1 |
| QLPUNM080248NPT | 80×3″ | 3″x3″ | 1 |
| QLPUNM110328NPT | 110×4″ | 4″x4″ | 1 |
Quick Line Aluminum Series
A complete system of pipes and fittings in aluminum. The fittings are made in painted, die-cast aluminum and are available in diameters:
20-25-32-40-50-63-80-110-168 & 220 mm
The entire range of threaded fittings is available with GAS or NPT thread.
Why Aircom Quick Line Aluminum
ELIMINATE WASTED AIR AND LEAKS – Our components in aluminum, technopolymer and HIP guarantee superior, above-average performance.
EXPANDABILITY ACCORDING TO REQUIREMENTS – The system grows with the plant.
OPTIMUM, CONSTANT PERFORMANCE – Constant energy savings over time.
MODULAR DESIGN – Flexibility of use and greater adaptability to the specific usage requirements.
EASY, RAPID INSTALLATION – Reduction in labor costs and ease of intervention.
AIRCOM is the only company that offers a complete range of piping systems differentiated by features and performance. The constant drive to innovate has led to two new piping systems:
Quick Line with aluminum pipes and with fittings in aluminum and in HR-Polymer. Both systems stand out in terms of speed and ease of assembly and for their modular characteristics.
Use the Aircom Male Threaded Quick Line Spigot to create any threaded fitting
Additional information
| Weight | N/A |
|---|---|
| Diameter | 1/2" or 16mm, 3/4" or 20mm, 1" or 25mm, 1 1/4" or 32mm, 1 1/2" or 40mm, 2" or 50mm, 2 1/2" or 63mm, 3" or 80mm, 4" or 110mm |
| NPT Thread | 3/8", 4", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3" |
| Aircom Series | Quick Line Aluminum |
