Aluminum Elbow 90 Degree

Aluminum Elbow 90 Degree

Aluminum Elbow 90 Degree

$21.53$980.00

In stock

$21.53$980.00

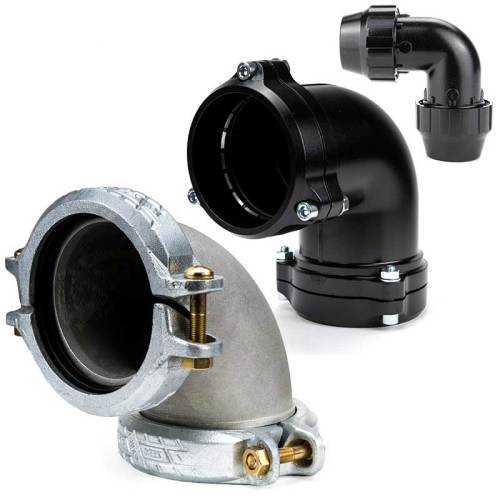

Aluminum Elbow 90 Degree Pipe to Pipe Connection for Quick Line Aluminum and Large Diameter Installations. Quick line aluminum 20-110mm and grooved is 168 & 220mm

SKU: N/A Categories: , Tag:
Clear
View cart

Description

Aluminum Elbow 90 Degree

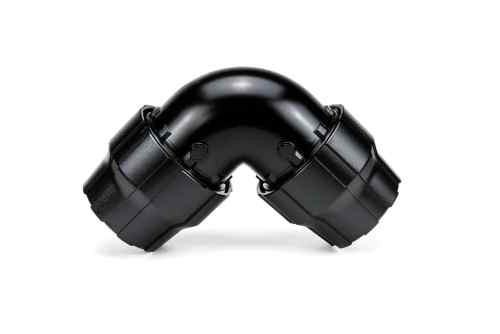

Aircom Elbow for the Quick Line Aluminum series and large diameter.



Code Style Ø inch qty / bag
QLGO90AL020 A 20 3/4″ 2
QLGO90AL025 A 25 1″ 2
QLGO90AL032 A 32 1.1/4″ 2
QLGO90AL040 A 40 1.1/2″ 1
QLGO90AL050 A 50 2″ 1
QLGO90AL063 A 63 2.1/2″ 1
QLGO90AL080 A 80 3″ 1

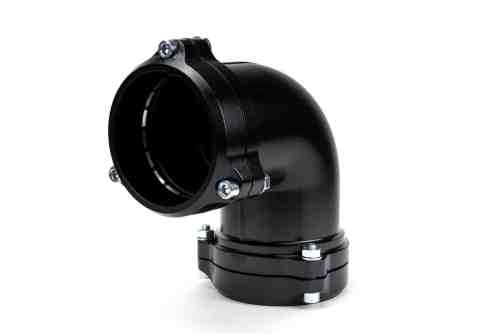

QLGO90AL110 B 110 4″ 1

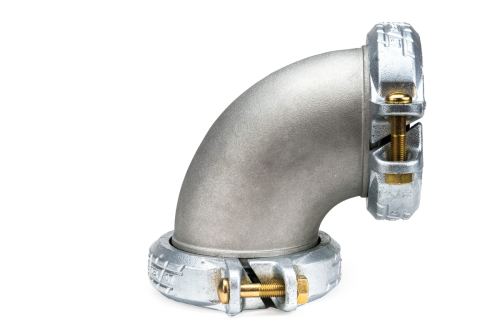

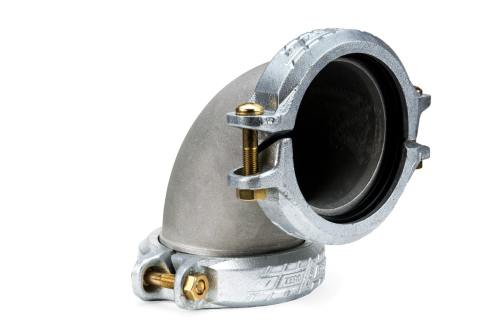

QLGO90AL168 C 168 6″ 1
QLGO90AL220 C 220 8″ 1

Quick Line Aluminum

A complete system of pipes and fittings in aluminum.

The fittings are made in painted, die-cast aluminum and are available in diameters:

20253240506380110168 & 220 mm

The entire range of threaded fittings is available with GAS or NPT thread.

Aircom systems pay for themselves.

5 main reasons:

  1. Eliminate Wasted Air and Leaks – Our components in aluminum, technopolymer and HIP guarantee superior, above-average performance.
  2. Modular Design – Flexibility of use and greater adaptability to the specific usage requirements.
  3. Expandability According to Requirements – The system grows with the plant.
  4. Easy, Rapid Installation – Reduction in labor costs and ease of intervention.
  5. Optimum, Constant Performance – Constant energy savings over time.



Additional information

Weight N/A
Diameter

, , , , , , , , ,

Aircom Series

Grooved Series, Quick Line Aluminum
