Aircom Filter Regulator with gauge (1/4" NPT)

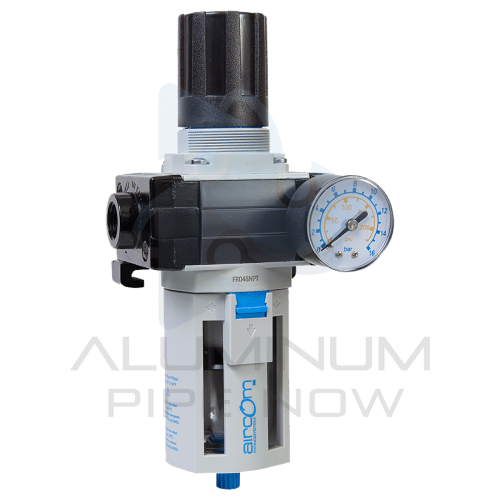

Aircom FRL Series Filter Regulator with Gauge

Price range: $89.10 through $138.60 PER SINGLE PIECE

SKU: N/A Category: Air Treatment

Description
Additional information

Description

Aircom FRL Series Filter Regulator with Gauge

FRL Series Filter Regulator Combo with Gauge (1/4″ & 1/2″ NPT)

The FRL Series Filter Regulator Combo combines two critical air prep functions into a single, space-saving unit. Available in 1/4″ and 1/2″ NPT port sizes, this integrated assembly removes harmful moisture, rust, and pipe debris while simultaneously delivering precise, regulated pressure to your downstream air tools and automation systems.

Technical Specifications

Feature	1/4″ NPT Model	1/2″ NPT Model
Series	FRL Series Modular Air Preparation	FRL Series Modular Air Preparation
Port Size	1/4″ NPT	1/2″ NPT
Filtration Rating	5 Micron	5 Micron
Max Supply Pressure	145 PSI (10 Bar)	145 PSI (10 Bar)
Regulated Pressure Range	7 – 125 PSI (0.5 – 8.5 Bar)	7 – 125 PSI (0.5 – 8.5 Bar)
Max Flow Rate	Up to 30 CFM	Up to 110 CFM
Operating Temperature	41°F to 140°F (5°C to 60°C)	41°F to 140°F (5°C to 60°C)
Drain Type	Manual Push-Drain	Manual Push-Drain
Included Accessories	Mounting bracket, gauge, and panel nut	Mounting bracket, gauge, and panel nut

Key Features & Benefits

2-in-1 Space-Saving Design: Combines a 5-micron particulate air filter and a precision pressure regulator into a single body, reducing piping connections and installation footprint.
Dual Port Size Options:
- 1/4″ NPT: Perfect for individual bench drops, precision pneumatic equipment, small air tools, and light-duty workshops.
- 1/2″ NPT: Designed for high-flow main distribution lines, heavy-duty pneumatic tools, and multi-actuator automation panels.
5-Micron Moisture & Debris Filtration: Traps liquid condensate, pipe rust, and airborne particulates down to 5 microns, protecting downstream valves, cylinders, and tools from internal damage.
Locking Pressure Adjustment Knob: Features a smooth control knob with a push-to-lock mechanism to maintain your target PSI setting, even in high-vibration shop environments.
Integrated Dual-Scale Pressure Gauge: Flush-mounted dial gauge displays accurate downstream pressure in both PSI and Bar for quick visual monitoring.
Polycarbonate Bowl with Steel Guard: High-visibility clear bowl allows 360-degree inspection of collected water, shielded by a rugged metal guard for impact protection.
