Aircom FRL Regulator with Gauge

Price range: $52.96 through $69.19 PER SINGLE PIECE

SKU: N/A Category: Air Treatment

Description
Additional information

Description

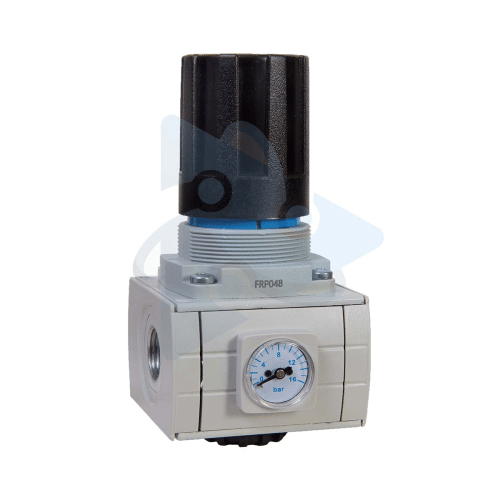

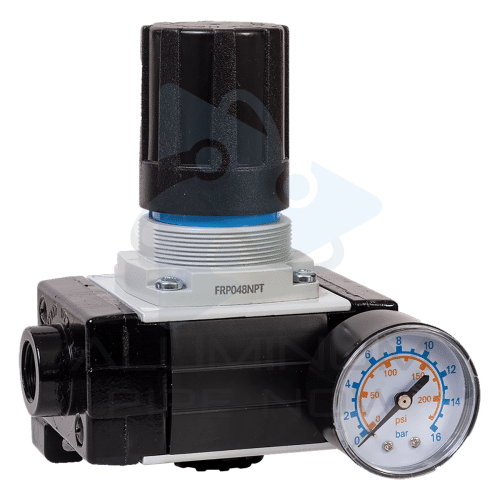

Aircom FRL Regulator with Gauge

The FRL Series Air Pressure Regulator is a high-performance pneumatic control valve engineered to deliver precise, stable downstream air pressure for air tools, automation systems, and shop machinery. Built with standard NPT connection ports and an integrated dial pressure gauge, this heavy-duty regulator dampens line fluctuations to protect sensitive pneumatic equipment and ensure consistent tool performance.

Technical Specifications

Feature	Specification
Series	FRL Series Modular Air Preparation
Regulator Type	Relieving, diaphragm-operated
Max Supply Pressure	145 PSI (10 Bar)
Operating Pressure Range	7 – 125 PSI (0.5 – 8.5 Bar)
Operating Temperature	41°F to 140°F (5°C to 60°C)
Gauge Port	Included (Dual-scale PSI / Bar)
Body Material	Aluminum die-cast
Included Accessories	Mounting bracket, gauge, and panel lock ring

Core Features & Advantages

Accurate Line Regulation: Maintains smooth, non-fluctuating delivery pressure even under erratic inlet pressure or changing air flow demands.
Push-to-Lock Adjustment Knob: Features an easy-grip adjustment knob with a downward locking collar to prevent unwanted drift caused by shop vibration.
Dual-Scale Dial Gauge: Clear face plate displays pressure readings in both PSI and Bar for quick visual monitoring.
Heavy-Duty Construction: Die-cast metal body built for high-demand industrial environments, automotive repair bays, and woodworking shops.
Modular FRL System Compatibility: Designed to pair seamlessly with FRL Series particulate filters and micro-fog lubricators via standard modular joiner brackets.
