Aluminum Manifold Female Threads With Drain

Aluminum Manifold Female Threads With Drain

Aluminum Manifold Female Threads With Drain

$31.47$97.57

In stock

$31.47$97.57

Use the manifolds at the end of drop lines to connect tools and equipment. Unused ports can be capped with a plug.

SKU: N/A Category:
Clear
View cart

Description

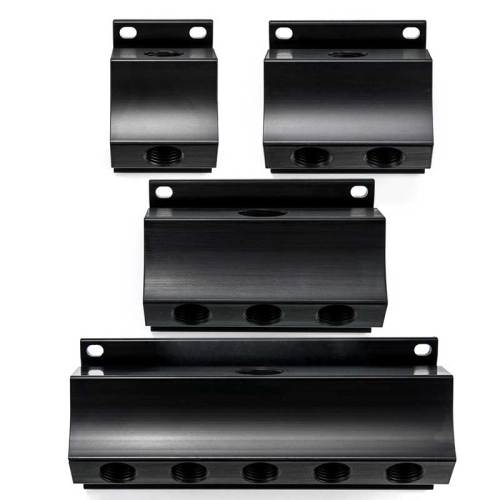

Aluminum Manifold Female Threads With Drain

Use the manifolds at the end of drop lines to connect tools and equipment. Unused ports can be capped with a plug.

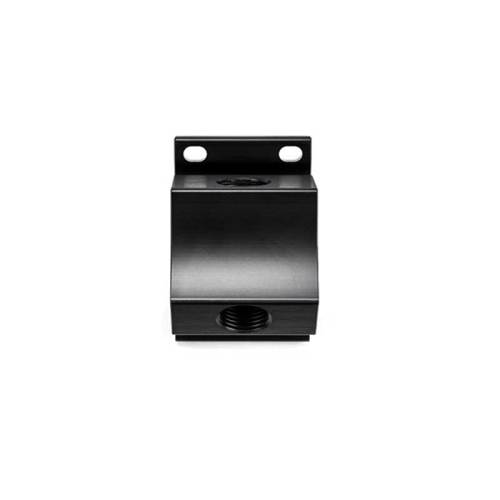

Code Ø inch qty / bag
DIRAPMAL048048NPT 1/2″x1/2″ 1/2″x1/2″ 1
DIRAPFRLAL

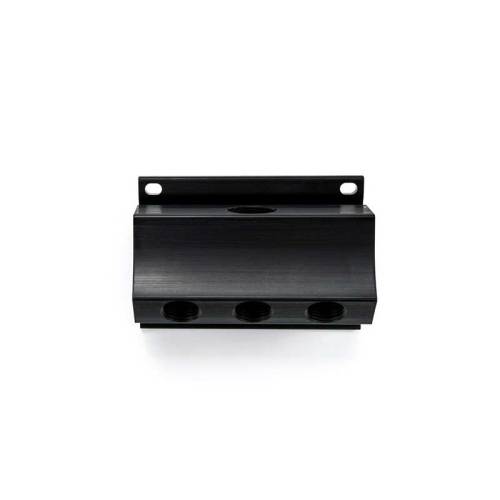

3 Port Manifold, female threads + drain (1/4″ blind)
Code Ø inch qty / bag
DIRAPFRLAL048048NPT 1/2″x1/2″X1/2″ 1/2″x1/2″X1/2″ 1
DIRAPLAL
4 Port Manifold, female threads + drain (1/4″ blind)
Code Ø inch qty / bag
DIRAPLAL048048NPT 1/2″x1/2″X1/2″ 1/2″x1/2″X1/2″ 1
DIRAPLAL068068NPT 3/4″x3/4″X1/2″ 3/4″x3/4″X1/2″ 1
DIRPMUAL120

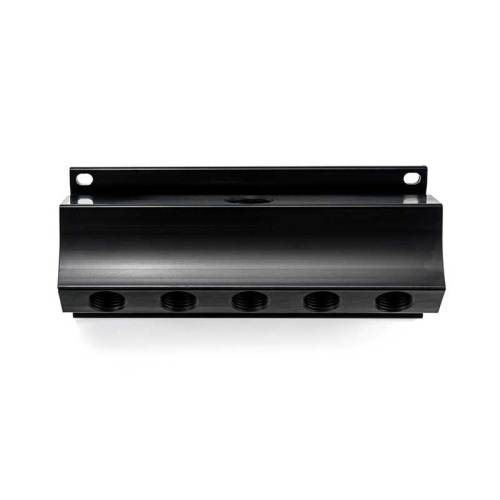

5 Port Manifold, female threads + drain (1/4″ blind)
Code Ø inch qty / bag
DIRPMUAL120NPT 3/4″x3/4″X1/2″ 3/4″x3/4″X1/2″ 1
DIRPMUAL200
7 Port Manifold, female threads + drain (1/4″ blind)
Code Ø inch qty / bag
DIRPMUAL200NPT 3/4″x3/4″X1/2″ 3/4″x3/4″X1/2″ 1

Quick Line Aluminum

A complete system of pipes and fittings in aluminum.

The fittings are made in painted, die-cast aluminum and are available in diameters:

20253240506380110168 & 220 mm

The entire range of threaded fittings is available with GAS or NPT thread.

Aircom systems pay for themselves.

5 main reasons:

  1. Eliminate Wasted Air and Leaks – Our components in aluminum, technopolymer and HIP guarantee superior, above-average performance.
  2. Modular Design – Flexibility of use and greater adaptability to the specific usage requirements.
  3. Expandability According to Requirements – The system grows with the plant.
  4. Easy, Rapid Installation – Reduction in labor costs and ease of intervention.
  5. Optimum, Constant Performance – Constant energy savings over time.

Use the Aluminum Manifold Female Threads With Drain on the 20 or 25mm drop pipe to connect a coupler and point of use tools or equipment.

Additional information

Weight N/A
Input Thread NPT

1/2 Inch, 3/4 Inch

Outputs NPT

3/4 x 1/2 + drain, 1/2 x 1/2 + drain, 1/2

Ports

1, 3, 4, 5, 7
